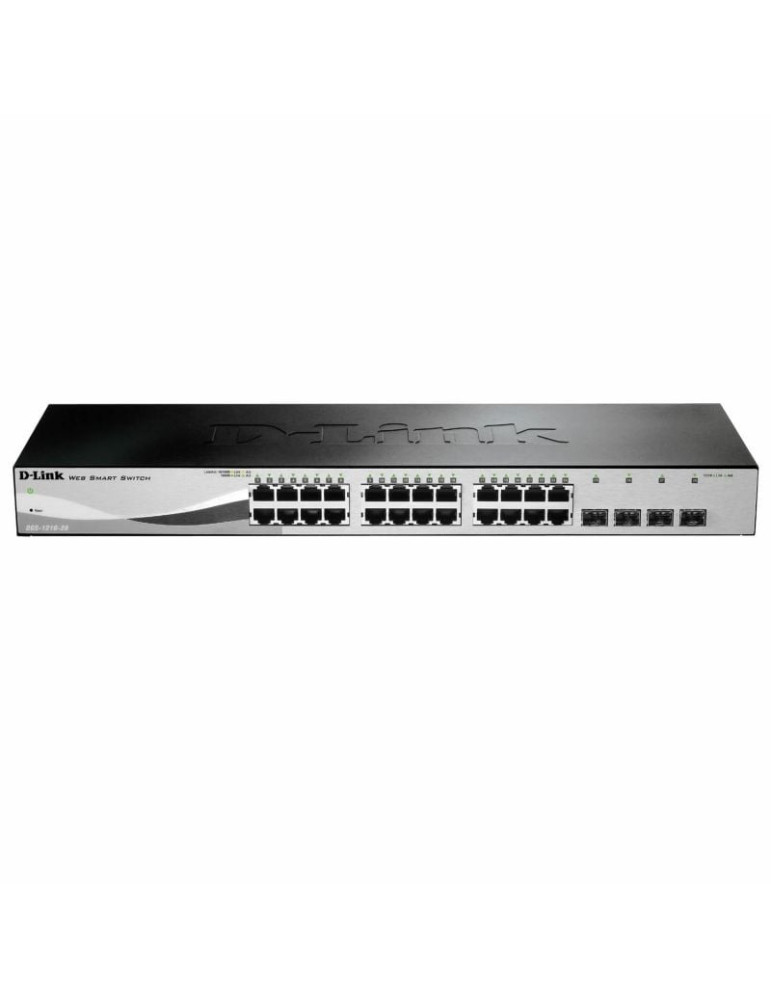

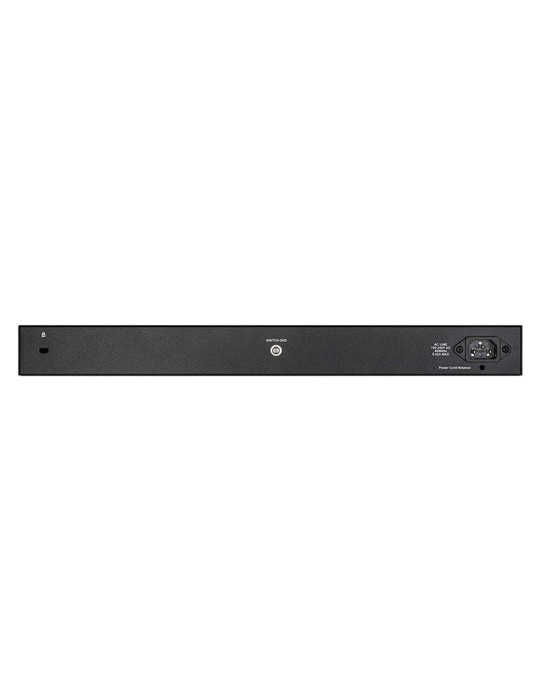

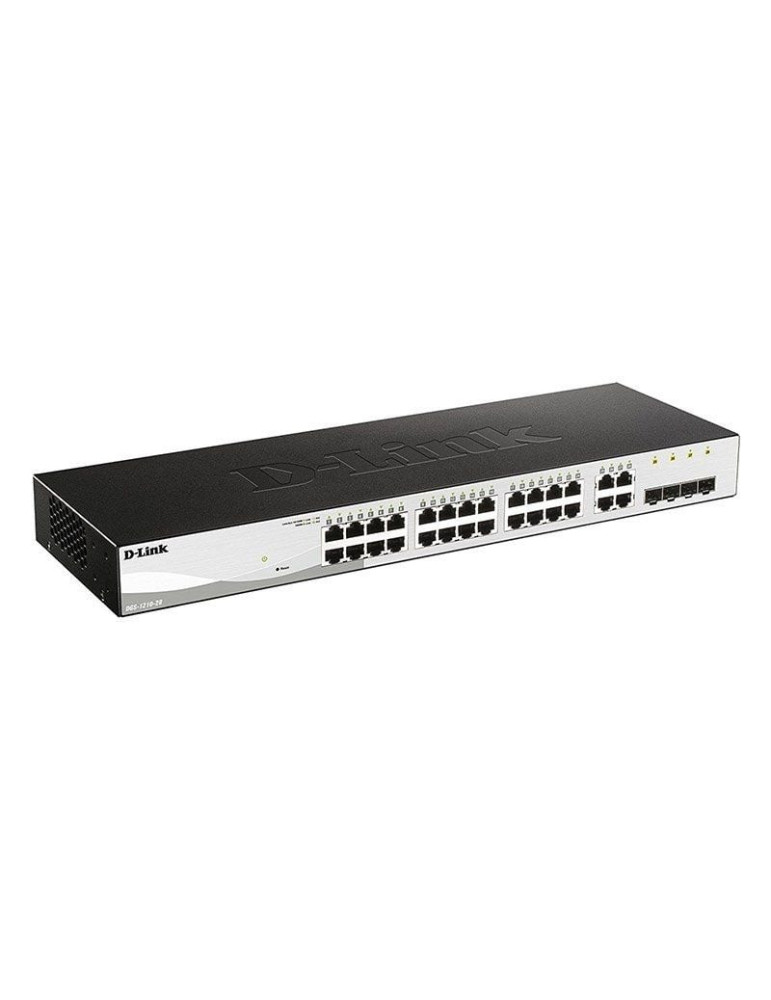

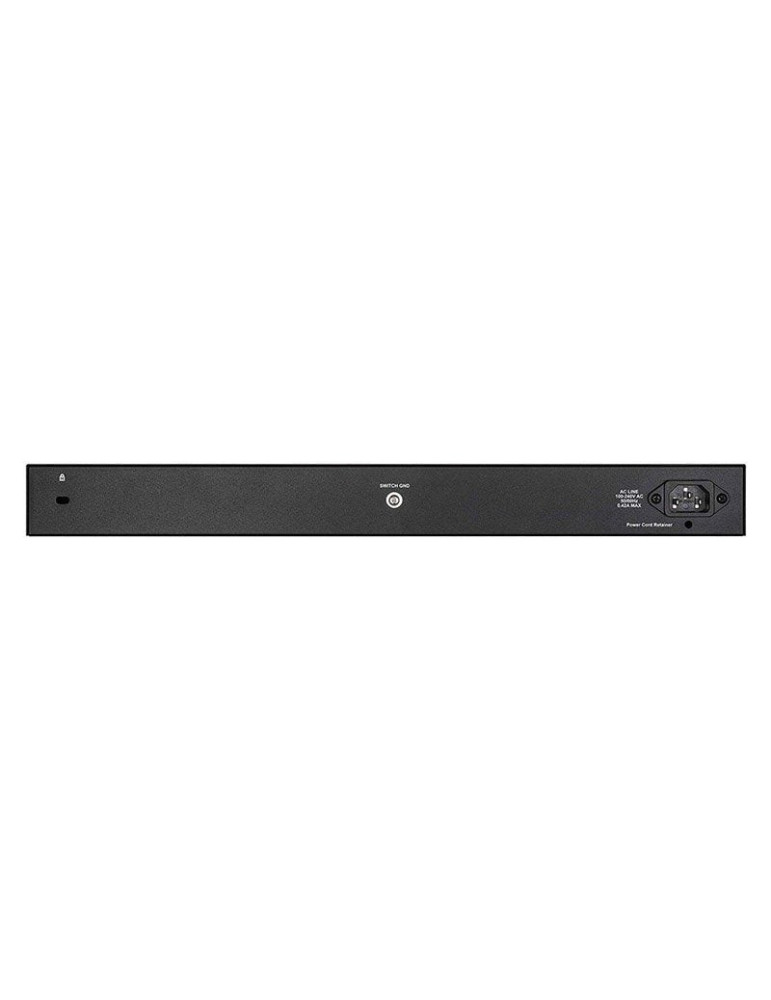

Switch Gestionable D-Link DGS-1210-28 28 Puertos/ RJ-45 Gigabit 10/100/1000/ SFP

Especificaciones técnicas

• '
• Interfaz '
  • '
  • 24 x 10/100/1000BASE-T'
  • 4 x 100/1000Mbps combo'
  '
• Estándar '
  • '
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) '
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)'
  • IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic '
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)'
  • IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic'
  • IEEE 802.3az Energy Efficient Ethernet (EEE)'
  • IEEE 802.3x Flow Control'
  '
• Cables Red
  ''
  • '
  • UTP Cat. 5, Cat. 5e (100 m max.)
    ''
  '
• Duplex Mode
  ''
  • '
  • Full/Half-duplex for 10/100 Mbps
    ''
  • Full-duplex for 1000 Mbps
    ''
  '
• Interfaz Media Intercambio
  ''
  • '
  • Ajuste automático MDI/MDIX para todos los puertos de par trenzado
    ''
  '
• Ahorro de energía'
  • '
  • Link Status detection'
  • LED Shut-Off'
  • Port Shut-Off'
  • System Hibernation'
  • Time-based PoE (DGS-1210-10P/28P/52P/52MP only)'
  '

• Seguridad

  ''
  • '
  • Access Control List secures network'
  • D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding'
  • Port Security supports 64 MACs per port'
  • ARP Spoofing Prevention'
  '

• Intuitive Management

  ''
  • '
  • D-Link Network Assistant Utility or Web-based GUI'
  • Built-in SNMP MIB for remote NMS (D-View 6.0)'
  • Compact CLI through Telnet'
  '

• Prestaciones avanzadas

  ''
  • '
  • Auto Surveillance VLAN'
  • Loopback Detection automatically disables a port when a loop is detected'
  • Cable Diagnostics allows administrators to determine cable status'
  • SFP ports for flexibility'
  • Auto MDI/MDIX'
  '

• Interface

  ''
  • '
  • Puertos 10/100/1000BASE-TX'
  • DGS-1210-28 - 24 puertos'
  • Puertos SFP'
  • DGS-1210-28 - 4 puertos'
  '

• Rendimiento

  ''
  • '
  • Switch Capacity'
  • DGS-1210-28- 56 Gbps'
  • 64-Byte Packet Forwarding Rate'
  • DGS-1210-28 - 41.7 Mpps'
  • MAC Address Table Size'
  • 16K'
  • Packet Buffer'
  • DGS-1210-10/20/28- 1.5 MB per device'
  '

• Consumo (Standby/Maximum)

  ''
  • '
  • DGS-1210-28 - 17.84W / 22.45W'
  '

• Power Input

  ''
  • '
  • 10 to 240 VAC, 50/60HZ'
  '

• Dimensiones (W x D x H)

  ''
  • '
  • DGS-1210-28 - 440 x 140 x 44 mm'
  '

• Peso

  ''
  • '
  • DGS-1210-28 - 1.67 kg'
  '

• Certificaciones

  ''
  • '
  • CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick'
  '
